Euro Global Bucket M-Series / Iso Global Loaders

Get A Quote

Built For: ISO / Euro Global / Telehandlers

Have Questions or need to find some dealers?

Call a sales representative today 1 (800) 570-8205. We are available Mon - Fri, 8am - 5pm

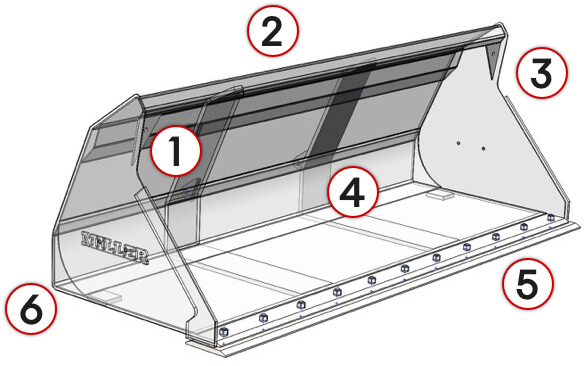

Gusseted Corner Sections provide lateral stiffness as well as a hole to Tie down objects into the Bucket

Folded Section running along the Top helps prevent twist

Notched End Cap provides pocket to help carry items longer than the Bucket

The Hooks are tied into the lower skids to provide internal support of the Cutting Edge making a stiffer bucket

Shown with Optional Bolt-On Cutting Edge. Reversible, Bolt-On Edge is 3 / 4" thick high carbon steel for twice the life

Integrated Boxed Section running along the bottom helps prevent twist while providing a better tie into the hook and lugs

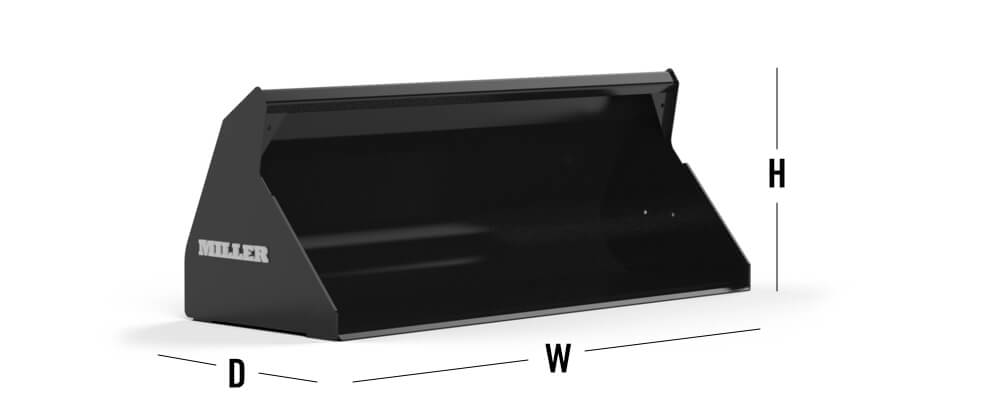

Specification	BQD96	BQD102	BQD108
[H] Height (in)	36.0	36.0	36.0
[W] Width (in)	96.0	102.0	108.0
[D] Depth (in)	36.0	35.0	35.0
Capacity (y³)	1.6	1.7	1.8
Farm Grapple	GFE4X	GFE4X	GFE4X
Industrial Grapple	GF	GF	GF
